Unlucky 4 sum

From pitches …

C13 chord

A thirteenth chord is principally known as an all bells and whistles dominant which is expected to resolve to its tonic chord a fifth below. It usually turns up as a dominant seventh (say C7) topped off with its relative supertonic minor (which would be Dm) for something in F major.

If we ignore the key it's in, we see that this chord comprises seven pitches separated by - in sequence - 4, 3, 3, 4, 3, 4 semitones. A final 3 semitones would 'round it off' to the top keynote 24 semitones above the root note.

C13 chord

The chord's two-octave path is thus 4334343 - of length 7 and sum 24 (for a two octave span). We've got that eighth top note in parentheses to indicate that it's not intended to be included in the chord's 'definition' (the pitch class - of 0 - is already included).

C13 chord

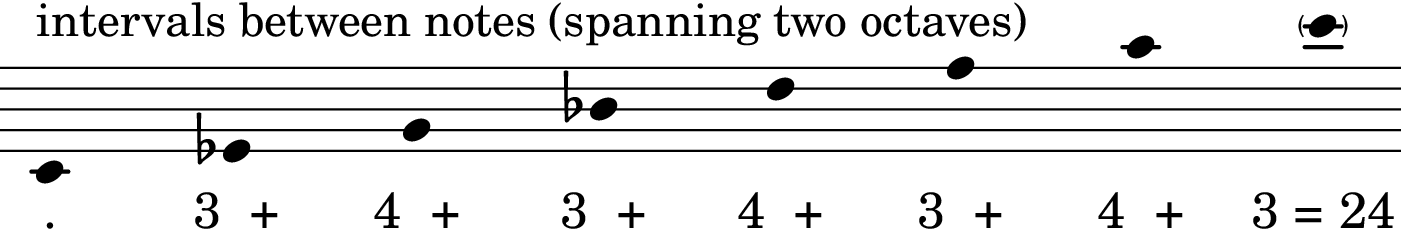

Now let's look instead at a Cm13th chord, perhaps resolving to F minor. Its key-independent two-octave path is 3434343 (see below - again with a parenthesised closing note).

Cm13 chord
C13 chord

Finally let's consider a more adventurous Cmajor13#11 chord, with a Lydian flavour imparted by that sharpened 11th. Despite the F#, it can still resolve quite nicely to F. Its key-independent two-octave path is 4343433 (see below - again with a parenthesised closing note). This time, however, we're colour-coding the notes because we're going to switch things around a bit.

… to Pitch Class Sets

CM13#11 chord

To construct the pitch class set modelling this particular chord, we drop the second part of the chord (green note heads) by an octave - which essentially turns them into pitch classes alongside the first (red note headed) part.

pitch classing

We'll now slide the green pitch heads to the left, where we can see that they sit between the red pitch heads, and that none of the pitch classes are duplicated.

pitch class set

We now have a formal PC set, with the intervals - in semitones - between the PCs forming the key-independent interval path 2221221 (7 PCs in the set, summing correctly to 12).

Again, that final green-headed parenthesised note is not in the set - it's shown only to elucidate the final 'wraparound' step (of 1 semitone) back to pitch class 0.

The alert reader will note that the PC set resulting directly from CΔ13#11 is, in fact, the Lydian mode of the C Major (Ionian) scale. But that's not why we've seemingly drawn attention to its 'Lydianicity' by colouring the F# in blue. No - the real reason for drawing attention to the F# is because in order to get the prime form of this PC set, we have noticed that the set's largest interval skips (the three consecutive 2s) bring us to that F#. Since the prime form requires that the largest interval skips are to be placed at the end of the interval path, this means that the F# must become the prime form's pitch class zero (in other words, its first note). Accordingly (by transposing from C to F#) we obtain the prime form - with its interval path of 1221222 - shown below.

CΔ13#11 as an inversion of the F# Locrian mode (F#13♭5♭9♭13)
PC set in prime form

It's fairly easy to demonstrate that the PC sets which embody both the ordinary 13th and the minor 13th (with which we opened) are all exactly the same.

All of the C13ths discussed thus far 'prime form' (as Forte PC set 7-35 - the Locrian mode of the diatonic scale) - to some inversion of a Locrian, as the following two expositions show.

C13 as diatonic
C13 as an inversion of the E Locrian mode (Em13♭9♭13)
Cm13 as diatonic
Cm13 as an inversion of the A Locrian mode (Am13♭5♭9♭13)

Can this mean that all 13th chords are some inversion of the Locrian mode of the diatonic scale?

How many 13ths are there?

It seems reasonable to proceed with such an enumeration only if we have some formal definition of exactly what constitutes a 13th chord. One of the most obvious qualities of the chord would appear to be that it comprises 7 distinct pitch classes. Another would appear to be that they should be constructed by stacking up six successive major or minor thirds after the initial root note.

The interval paths of such chords will thus be formed from six 3s or 4s and terminated by whatever value would take the path sum up to 24. Six '3s or 4s', being the same as six '3 + (0s or 1s)', it's reasonably clear that 64 distinct interval paths - labelled from 333333, 333334, 333343, 333344, … to 444433, 444434, 444443, 444444 will capture all possibilities.

It's also easy to see that any path containing either three consecutive 4s or four consecutive 3s must be rejected since the pitch classes on either side of such jumps are bound to be exactly an octave apart, thus being the same pitch class and violating the principle of distinctness. There are many other routes, within this procedure, which result in the duplication of pitch classes.

It turns out, therefore, that - after filtering out all of the interval paths which would result in pitch class duplication - only 28 ways of stacking major and minor thirds to build up some kind of 7 note 13th chord remain. These are, in ascending order of minor-major-thirdiness:

33343441212213343334412131223443343212222143433342212131
33344341221213343343412221223443433213122143433432212221
33433441212222343344312222124333434131212243434332221221
33434341221222343433421221224333443131221243443333121221
33434431221312343434321222124334334221212244333432213121
33443342121222343443321312124334343221221244334332222121
33443432121312344333421221314334433222121244343333122121

Also shown, in red to the right of each 3|4 construction, is the interval path signature of the PC set which contains the 7 distinct PCs of the resulting chord. These are - of course - in normal form because interval path signatures give you that for nothing. A quick inspection should demonstrate that these are by no means all just variations of the seven modes of the diatonic scale. The presence of 3s in such signatures is enough to disabuse one of such notions. There are also several with runs of four 2s.

By rotating all 28 of the (red) PC set signatures into their prime forms (with their largest skips packing to the right, as per Forte), we quickly uncover the fact that there are four distinct PC sets in play here:

Four Prime Form PC Sets
1212213121222212212131221222
7-32A7-347-32B7-35
<3,3,5,4,4,2><2,5,4,4,4,2><3,3,5,4,4,2><2,5,4,3,6,1>
Harmonic MinorLocrian SuperIndian/EthiopianLocrian Diatonic
33343441212213334334412122223334434122121333434341221222
33434431221312334433421212223344343212131234334341222122
34344332131212343344312222123433344121312234343342122122
34433342122131344334321222213443433213122134343432122212
43334341312122433433422121224333443131221243343432212212
43443333121221433443322212124343334221213143433432212221
44333432213121443343322221214434333312212143434332221221

They occur in four groups of seven arrangements - the seven modes of each of their common prime PC sets. The first (which includes the Harmonic Minor scale, 2122131, in its fourth row) and third (including Indian and Ethiopian scales in its third and sixth rows) column pairs are asymmetric PC sets (inverses of each other). The second and fourth are both symmetric PC sets, the first being the prime form of the half-diminished scale (arguably the next most popular heptatonic division of the octave, encompassing as it does the hindi, melodic minor, overtone, javanese, and both locrian natural and super scales). The fourth is the various rotations (i.e. modes) of PC Set 7-35, i.e. Locrian-Diatonic. The three types of 13th chords we dealt with above are in boldface.

Relationships between 13ths and the Diatonic Modes

The 13th chord patterns in the fourth, diatonic, group are - starting from the top, and not based on any particular scale

  • 3343434 ≡ m13♭5♭9♭13 ['Locrian 13th']
  • 3433434 ≡ m13♭9♭13 ['Phrygian 13th']
  • 3434334 ≡ m13♭13 ['Aeolian 13th']
  • 3434343 ≡ m13 ['Dorian 13th']
  • 4334343 ≡ 13 ['Mixolydian 13th' = the standard 'dominant 7th' mode]
  • 4343343 ≡ Δ13 ['Ionian 13th' = the major 7th dominant series]
  • 4343433 ≡ Δ13#11 ['Lydian 13th']

But naturally, upon actual transcription, one must commit to a key - say C:

the Modal bases for 7 diatonic 13ths

Stepping away from the diatonic 13ths, if we based a 13th chord on the Ethiopian scale (row 6 column 3) - with its PC Set interval path signature 2212131 - we would generate a major/minor 3rd stacking of 4343334 ≡ Δ13♭13. The Indian scale (1213122 → 3433344) would yield a distinctly weird m13♭9♭11♭13. We feel reasonably certain that there will be a circumstance where every one of these 28 possible 13ths will sound fantastic.

Squeezed 'Thirteenths'

The 28 13ths above are constrained to be contained within 3 or 4 semitones of a double octave span. As such, their top notes will always be a 'true' 13th, possibly flattened. The notes within the chord are not subject to undue 'stress' and the 7ths, 9ths and 11ths turn up in their expected places - perhaps occasionally bumped sideways as flattened or sharpened creatures as it were. However if this 'thirteenth pegging' is relaxed, there are - technically speaking - eight further 13ths. The first two are rather 'squashed' as the top notes are 5 semitones down from a double octave, giving us a double-flattened 13th - which a musician will consider illegitimate (a double-flattened 13th being - enharmonically - just a plain old 5th, the chord's 'internal' 5th already being flattened).

333433
m13♭5♭♭7♭9♭11♭♭13
e.g. Cm13♭5♭♭7♭9♭11♭♭13 = C–E♭–G♭–A–D♭–E–G
334333
m13♭5♭9♭11♭♭13
e.g. Cm13♭5♭9♭11♭♭13 = C–E♭–G♭–B♭–D♭–E–G

We note that the initial four notes of the first form a full-diminished chord. It thereby already contains the 13th as a pitch class, albeit an octave lower (so not actually a 13th but a 6th). It's as if the chord has been put under so much compressive force that the 9th, 11th, 13th (and even the 7th) begin to crash into each other (as pitch classes). In both cases, the top flat 11th and double-flat 13th are effectively the major 3rd and major 5th of the tonic. The flat nine is really the only 'novelty' in these chords and to call these chords 13ths is rather stretching a point (actually the opposite - it's compressing a point). As pitch class sets, these are mutual inverses, the first being characterised as an interval path signature 1212123 (Forte's 7-31A) and the second (its inverse, 7-31B) as 1212132 (which would of course 'prime form path' as 2121213), both sharing interval vector <3,3,6,3,3,3>, 'maxing out' with their 6 minor thirds.

Stretched 'Thirteenths'

The remaining 6 chords are - in contrast - stretched, and their top notes are only two semitones below the double octave. Thus a dominant 7thness turns up at the top end, rather than in the middle, of the chord (where the internal 7thnesses are all Δ, i.e. major 7ths). The first couple of these are the antisymmetric pair (path signatures of 2131311 and 3131211, corresponding to prime form signatures of 1121313 (Forte 7-21A) and 1211313 (Forte 7-21B) respectively, sharing interval vector <4,2,4,6,4,1> with maximal major-thirdy content.

344344
mΔ13#11#13
e.g. CmΔ13#11#13 = C–E♭–G–B–D–F#–A#
443443
+Δ13#9##11#13
e.g. C+Δ13#9##11#13 = C–E–G#–B–D#–G–A#

In fact by now it's becoming rather difficult to 'spell' these as 13th chords, since the pitches tread on each others' toes so much. The above '+Δ13#9##11#13' is pure guesswork on this author's part.

The second pair of 'stretchy' 13ths have path signatures of 2221311 (prime path 1122213 ≡ Forte 7-30A) and 3122211 (prime path 1222113 ≡ Forte 7-30B) - again mutual inverses - with interval content <3,4,3,5,4,2>

434344
Δ13#11#13
e.g. CΔ13#11#13 = C–E–G–B–D–F#–A#
443434
+Δ13#9#11#13
e.g. C+Δ13#9#11#13 = C–E–G#–B–D#–F#–A#

There remain two further '13ths'. They each represent symmetric (self-inverting) PC sets, the first with a path signature of 3121311 (prime form path as 1131213 ≡ Forte 7-22, interval content <4,2,4,5,4,2>) and the second with path signature 2222211 (prime form path as 1122222 ≡ Forte 7-33, interval content <2,6,2,6,2,3> replete with major 2nds and major 3rds).

434434
Δ13#9#11#13
e.g. CΔ13#9#11#13 = C–E–G–B–D#–F#–A#
443344
+Δ13#11#13
e.g. C+Δ13#11#13 = C–E–G#–B–D–F#–A#

Terminological Conclusions

Are any of these eight stretched or squeezed chords really 13ths? Insofar as they comprise heptachords they are. Insofar as their construction involved upward skips of only major and minor thirds they are. But musically, they just aren't. They have too much internal compression or tension. This is due to not 'nailing down' - for the want of a better term - a (possibly flattened) 13th at the top of the runs of thirds and leaving the end of the chord flapping around in the breeze (as David Jones would say). Such freedom permits an absence of what one might expect of 'thirteenthness'.

So the 28 unstretched and unsqueezed 13ths above, distributed between only four PC Sets, are all (assuming fully populated ones) there really are. We note that this means there are only three distinct interval contents (two being identical since non-symmetric PC Sets' forms - A and B - always share a common interval vector) available to carry the various flavours of all 28. These are <3,3,5,4,4,2>, <2,5,4,4,4,2>, and <2,5,4,3,6,1>.

Interval classwise, then, we have that a 13th contains either 2 or 3 minor 2nds [or major 7ths], with - correspondingly - 5 or 3 major 2nds [minor 7ths] and (also correspondingly) 5 or 4 minor 3rds [major 6ths]. We also have that if the 13th contains only a single tritone then it must also contain the maximum number of perfect 4ths [or perfect 5ths] possible within a heptachord, i.e. 6, and must also contain 3 major 3rds [or minor 6ths]. Otherwise a 13th must contain 2 tritones and 4 each of major 3rds and perfect 4ths [or minor 6ths and perfect 5ths].

This means that if you elect a 13th chord constrained to containing only a single tritone then all else follows, i.e you cannot help but have 2 m2/M7, 5 M2/m7, 4m3/M6, 5 M3/m6 and 6 P4/P5, which further means that you have elected one of the 7 diatonic 13ths. If, however, you choose one with two tritones (the only remaining kind) then you have forced it to contain 4 P4/P5 and 4 M3/m6 and at least 4 m3/M6 and 2 m2/M7. The only choice you have left is a chord with 5 m3/M6, 3 M2/m7 and 3 m2/M7 or one with only 4 m3/M6 and 5 M2/m7 and 2 m2/M7.

It would appear, therefore, that there are - at most - two degrees of freedom available to anyone constructing a 13th chord from its interval content alone. Is that interesting or is that interesting?
